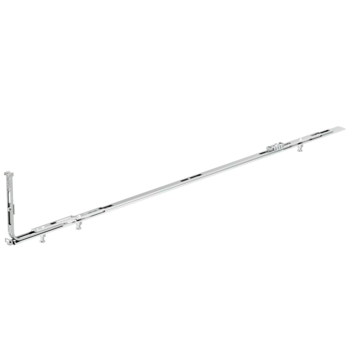

6-34693-07-0-1_kd30

6-34693-07-0-1

Part No.6-34693-07-0-1
EAN
Product description Technical data Downloads
Area of application
Window technology
Area of application (specified)
Tilt&Turn, Tilt-First
Application system
UNI-JET
Product type
Locking system
Packing unit
1
Minimum ordering unit
1
Login

Please enter your login credentials to view prices or to order items

No content available

Attributes

Furnishing
16 mm
Mechanically coupled
Engagement pin
Profile material
Holz, PVC
Faceplate dimension (in mm)
16 x 2,25
Type of faceplate
Flachstulp
Faceplate end
Square
Faceplate length
745 mm
Locking type
Mushroom insertion cam, 2 mushroom insertion cams

Installation and assembly instructions

046731_I_de.pdf
PDF (1MB)
Deutsch, Neutral
046731_I_en.pdf
PDF (1MB)
Englisch
046731_I_es.pdf
PDF (1MB)
Spanisch
046731_I_fr.pdf
PDF (1MB)
Französisch
046731_I_ru.pdf
PDF (1MB)
Russisch
046732_I_de.pdf
PDF (1MB)
Deutsch, Neutral
046732_I_en.pdf
PDF (1MB)
Englisch
046732_I_es.pdf
PDF (1MB)
Spanisch
046732_I_fr.pdf
PDF (1MB)
Französisch
046732_I_ru.pdf
PDF (1MB)
Russisch

Catalogue data in PDF format

6-34693-07-0-x_kd01.pdf
PDF (1MB)
Deutsch, Englisch
