6-36899-18-L-1_kd30

6-36899-18-L-1

Part No.6-36899-18-L-1
EAN
Product description Technical data Downloads
Area of application
Window technology
Area of application (specified)
Tilt&Turn, Turn-Only, Tilt-First
Application system
UNI-JET M6/12
Product type
Pivot-rest
Packing unit
1
Minimum ordering unit
1
Login

Please enter your login credentials to view prices or to order items

3 Variants found

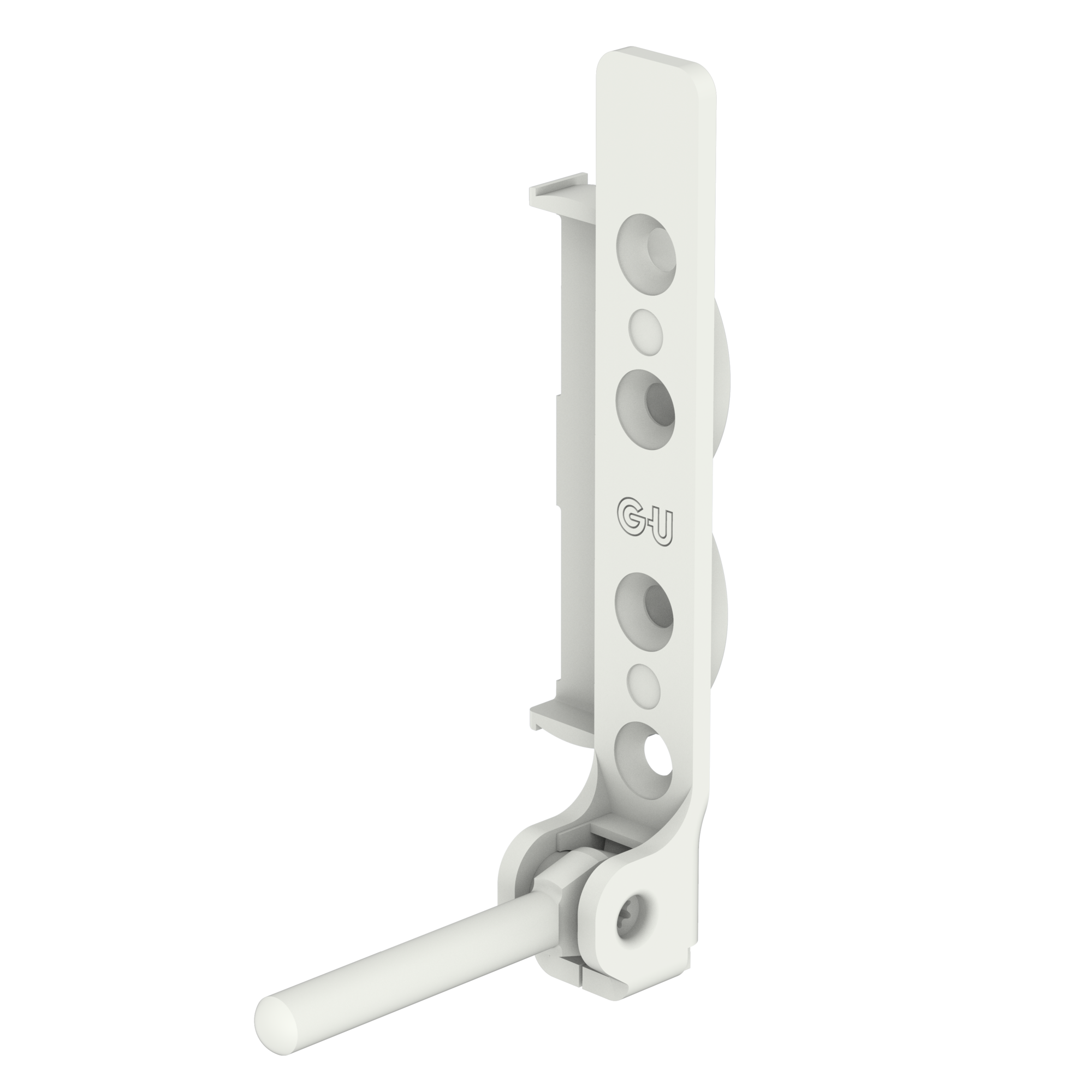

6-36899-18-L-18_kd30
6-36899-18-L-18 | Pivot-rest
Part No.6-36899-18-L-18
EAN
To the product
6-36899-18-R-1_kd30
6-36899-18-R-1 | Pivot-rest | Pivot-rest M6, 12/18-9+13
Part No.6-36899-18-R-1
EAN
To the product
6-36899-18-R-18_kd30
6-36899-18-R-18 | Pivot-rest
Part No.6-36899-18-R-18
EAN
To the product
No content available

Attributes

Diameter of drill-hole part
33,9 mm
Axis
9 mm
Max. sash weight
130 kg
Clearance
12 mm
Opening direction of hinges
Left
System
12/18-9, 12/18-13
Axis 2
13 mm
Profile material
Holz
Overlap width
18 mm

Catalogue data in PDF format

6-36899-18-L-x_kd01.pdf
PDF (1MB)
Deutsch, Englisch
