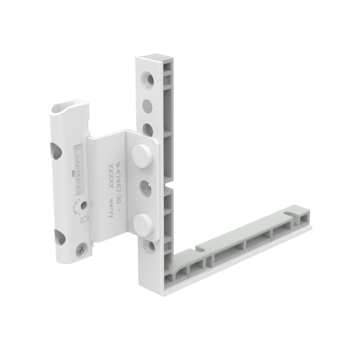

6-36883-20-R-1_kd30 6-36883-20-R-7_kd30
6-36883-20-R-1_kd30 6-36883-20-R-7_kd30

6-36883-20-L-1

Part No.6-36883-20-L-1
EAN
Product description Technical data Downloads
Area of application
Window technology
Area of application (specified)
Tilt&Turn, Turn-Only, Tilt-First
Application system
UNI-JET S, UNI-JET D
Product type
Rebate corner-hinge
Packing unit
1
Minimum ordering unit
1
Login

Please enter your login credentials to view prices or to order items

1 Version found
6-36883-20-R-1_kd30
6-36883-20-R-1 | Rebate corner-hinge | REBATE CORN. HINGE UNI-JET D/S 13mm W.BR
Part No.6-36883-20-R-1
EAN
To the product
No content available

Attributes

Furnishing
Circumferential
Clearance
12 mm
Height adjustment
Lower 2 mm, Lift 2 mm
Max. sash weight
130 kg
Axis
13 mm
Opening direction of hinges
Left
Profile material
PVC
System
12/20-13
Overlap width
20 mm
