6-36055-18-L-1_kd30

6-36055-18-L-1

Part No.6-36055-18-L-1
EAN
Weitere Produktinformationen Varianten
Area of application
Window technology
Area of application (specified)
Tilt-First, Turn-Only, Tilt&Turn
Application system
UNI-JET M8/12
Product type
Stay-bearing
Packing unit
1
Minimum ordering unit
1
Login

Please enter your login credentials to view prices or to order items

Content

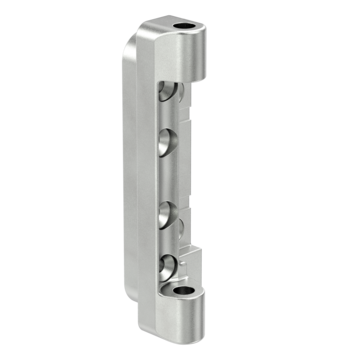

UNI-JET STAY BEARING M8/12, 12/18-9+13, LH (WITHOUT STAY-BEARING PIN)

Attributes

Axis
9 mm
Clearance
12 mm
Max. sash weight
200 kg
Overlap width
18 mm
Diameter of positioning pin
7,9 mm
Length of positioning pin
10 mm
Axis 2
13 mm
Opening direction of hinges
Left
Profile material
Holz
Diameter of drill-hole part
33,9 mm

Catalogue data in PDF format

6-36055-18-L-x_kd01.pdf
PDF (1MB)
Deutsch, Englisch
Variants
The following variants are available for this product:
article
article description
6-36055-18-L-7_kd30
6-36055-18-L-7 | Stay-bearing | Stay-bearing, Tilt&Turn
Stay-bearing, overall width 26 mm, overall height / depth 34.5 mm, overall length 92 mm, Axis 9 mm, Max. sash weight 200 kg
6-36055-18-R-1_kd30
6-36055-18-R-1 | Stay-bearing | STAY-BEARING M8/12, 12/18-9+13, RH
Stay-bearing, overall width 26 mm, overall height / depth 34.5 mm, overall length 92 mm, Axis 9 mm, Max. sash weight 200 kg
6-36055-18-R-7_kd30
6-36055-18-R-7 | Stay-bearing | Stay-bearing, Tilt&Turn
Stay-bearing, overall width 26 mm, overall height / depth 34.5 mm, overall length 92 mm, Axis 9 mm, Max. sash weight 200 kg
