Series description
Push handles – Ideal for entrance doors
Push handles enable safe opening and closing of doors by means of a pushing motion – functional, comfortable, and reliable. The solid construction ensures long-lasting and low-maintenance use.
Features
- Suitable for entrance doors in commercial buildings or residential front doors
- Compatible with wooden, steel, and aluminium doors
- Made of durable stainless steel
- Available in various handle shapes: straight, angled, curved, or bow handle
- Can be mounted on a rose or with concealed fixing
- Different lengths to suit design and function
Series description

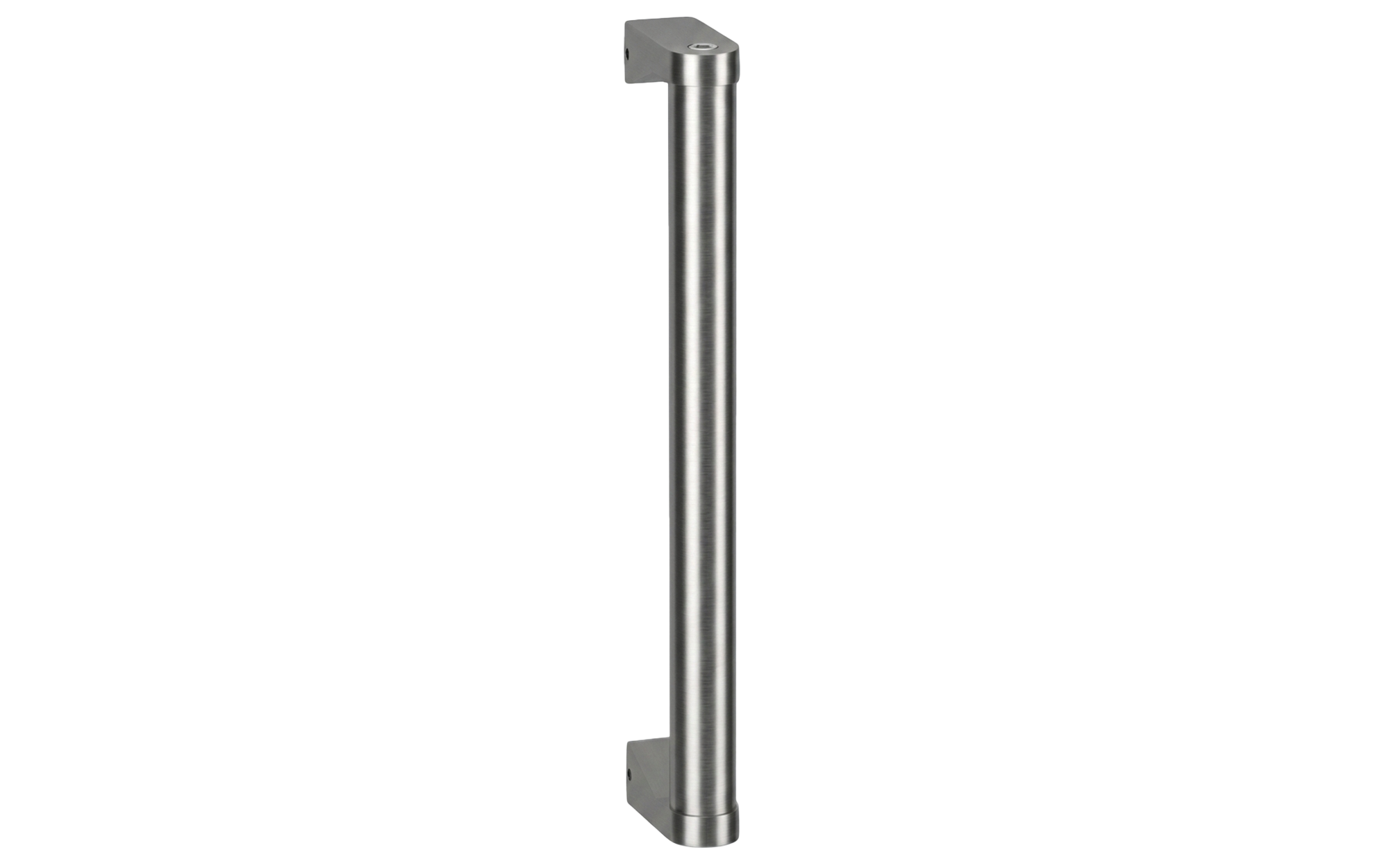

Long vertical pull bar for PVC and Aluminum doors
High-quality vertical pull bar made of 304 stainless steel, with Ø40 mm tube. Compatible with pivot and standard doors in aluminum, PVC, glass, wood and steel. Available in lengths of 2300 mm and 2700 mm, with installation options using through-bolt or self-tapping screw.
Advantages
- Made from high-quality 304 stainless steel.
- Compatible with aluminum, PVC, glass, wood, and steel doors.
- Available in lengths of 2300 mm and 2700 mm.
- Installation using through-bolt or self-tapping screw.
specifications at a glance
Technical data
| Code | Description | Length (mm) | Angle |
|---|---|---|---|
| L-25042-23-0-0 | Vertical bar | 2261 - 2300 | 90° |
| L-25042-27-0-0 | Vertical bar | 2661 - 2700 | 90° |
Innovative technology
Components and accessories

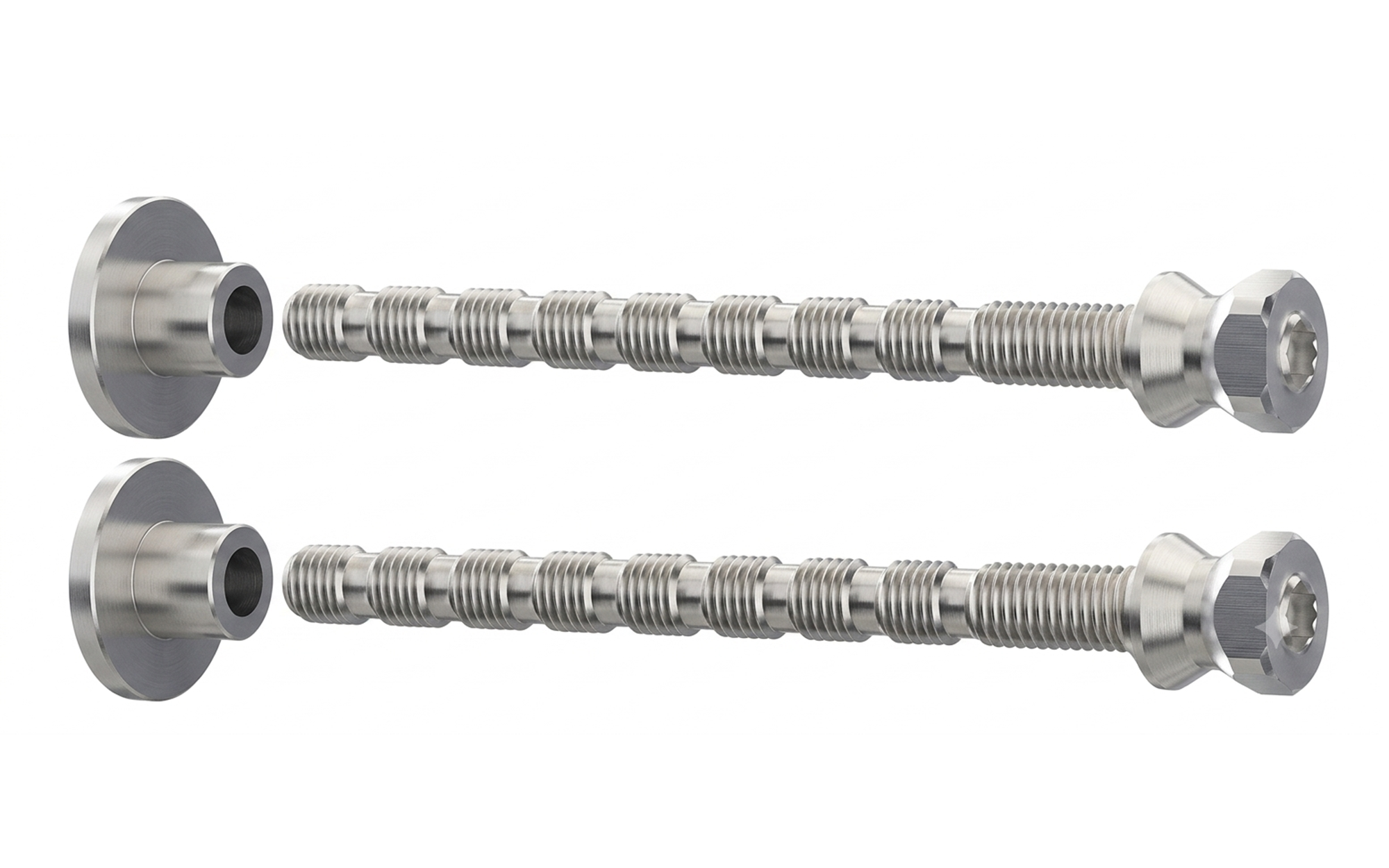

- Code: L-25042-02-0-0
- Description: X2 screws for vertical bar fixing M11X35

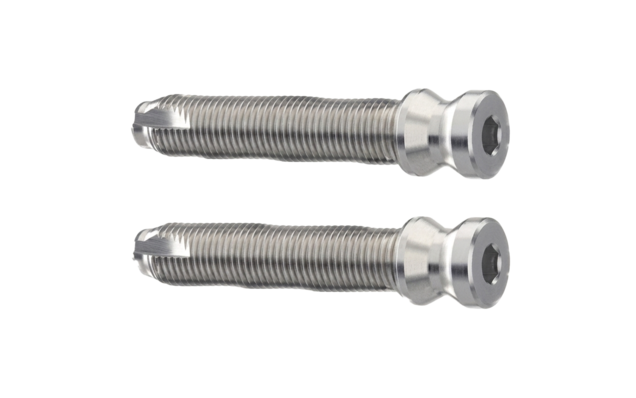

- Code: L-25042-03-0-0
- Description: Fixing set for handle (inside/outside)
