Spring-loaded Hinges Suitable for Parallel and Tilt Systems

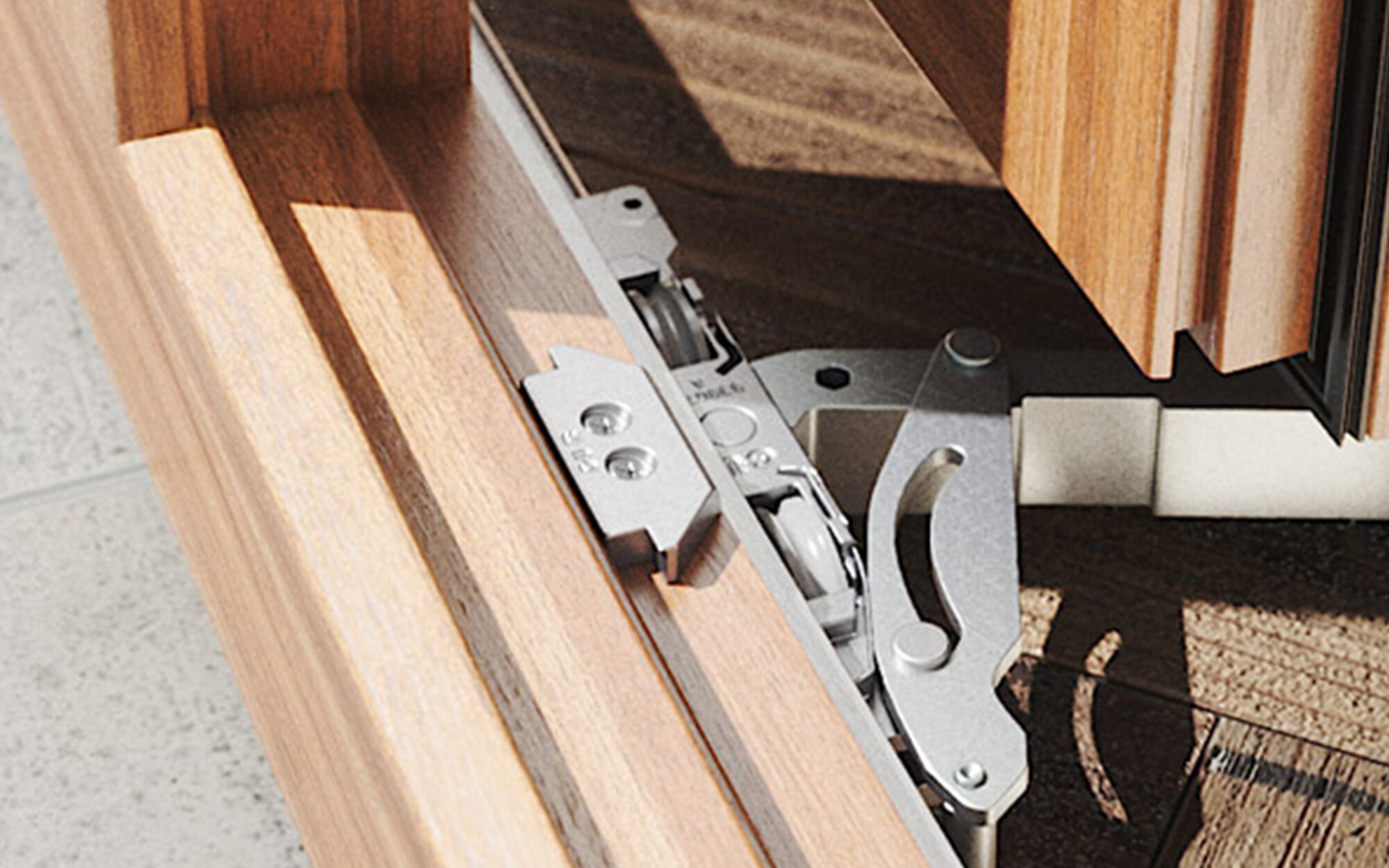

Spring-loaded lower interconnects are used in parallel sliding hardware systems to connect the hardware components located in the lower section of the sash, to transmit movement in a controlled manner along the lower track, and, when the sash is closed, to move the sash into the tilt position via latching tongues.
The four available size options, suitable for different sash widths, cover a broad application range of 590 mm to 1,600 mm. This enables the correct configuration of the hardware system by selecting the product appropriate to the sash dimensions, ensuring that the system components work together compatibly.
The spring mechanism supports the opening, closing, and tilt-transition movements of the parallel sliding system. It contributes to the smooth transfer of movement along the lower linkage path, helping ensure the sash operates safely and functionally.
Product Advantages
- Wide size range: Offers four options suitable for different sash widths from 590 to 1,600 mm.
- Correct system configuration: Equipped with 1 or 2 catch tongues depending on the sash width, thereby preventing the sash from swinging in tilt position.
- Durability: Thanks to its spring-loaded design and metal hardware, it offers outstanding functionality and a long service life.
- Comfort:Supports the harmonious interaction of all functions in parallel tilt-and-slide systems and ensures easy operation of the system.
- Ease of installation:Thanks to its one-piece design, it is easy to install and requires no adjustment.
Technical Details Table
Spring-loaded lower intermediate hinges used in parallel sliding and tilt-and-slide systems provide suitable solutions for different sash widths. Compatible with PVC, timber, and aluminium window and door systems, these fittings contribute to the balanced and secure operation of the window. The table below lists the suitable models according to the dimensional ranges:
| Product Code | Product Description | Measurement Range | Number of Spring Tangs | Compatible Profile Types |
|---|---|---|---|---|
| U-45600-06-0-1 | Spring Intermediate Connector Bottom 600 mm | 590 - 750 mm | 1 (Single Point) | PVC, Wood, Aluminum |
| U-45600-07-0-1 | Spring Intermediate Connector Bottom 750 mm | 740 - 940 mm | 2 (Two Points) | PVC, Wood, Aluminum |
| U-45600-09-0-1 | Spring Intermediate Connector Bottom 950 mm | 941 - 1270 mm | 2 (Two Points) | PVC, Wood, Aluminum |
| U-45600-12-0-1 | Spring Intermediate Connector Bottom 1280 mm | 1271 - 1600 mm | 2 (Two Points) | PVC, Wood, Aluminum |
