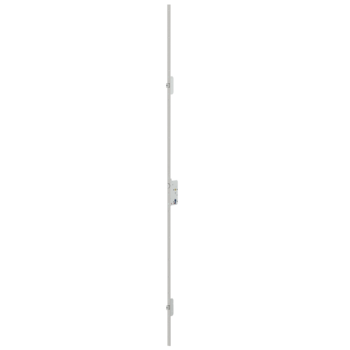

6-33198-24-L-8
Part No.6-33198-24-L-8
EAN
19 Variants found
View all variants
No content available
Attributes
Backset
65 mm
Faceplate dimension (in mm)
24 x 5 x 5 x 2
Hole distance
72 mm
Locking type (material short text)
sf2
Interior square of follower
9 mm
Top locking position 1 (A1)
700 mm
Faceplate length
2.285 mm
Type of faceplate
U-Stulp
Locking system
self-locking
Panic function
Panic function E
Single-component material deadbolt
Without deadbolt
Single-component material lock case
Steel
Single-component material faceplate
Stainless steel
Single-component material locking elements
Steel
Supplement
with steel swarf protection sleeves
Latch characteristics
Latchbolt with trigger lever
Colour of faceplate
stainless steel
Fire/smoke protection
door-leaf height – for fire-resistant doors
Number of leaves
2-leaf
A-opener
optional
Handle height
1,05 mm
Marking notch
1.050 mm
Finish of lock case
galvanised
Finish of faceplate
matt
Characteristics of deadbolt
Without deadbolt
SECURY Special features
For DIN frames
Cylinder hole-type
Profile cylinder
Lock case
closed
Width of lock case
90 mm
Lock class
Grade 4
Characteristic of faceplate
Square
Faceplate end
Square
Type of door
Escape door, Fire protection door, Smoke protection door, Anti-panic door
Bottom locking position 1 (B1)
790 mm
Version
Lever handle-operated, Automatic
Follower
Clamping follower
Single-component material follower
Steel
Single-component material latch
Steel
