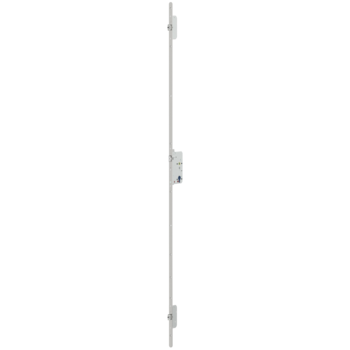

6-33767-03-L-8
Part No.6-33767-03-L-8
EAN
7 Variants found
View all variants
No content available
Attributes
Backset
65 mm
Faceplate dimension (in mm)
20 x 3
Hole distance
74 mm
Locking type (material short text)
sf2
Interior square of follower
9 mm
Top locking position 1 (A1)
700 mm
Faceplate length
1.777,5 mm
Type of faceplate
Flachstulp
Locking system
self-locking
Panic function
Panic function E
Single-component material deadbolt
Without deadbolt
Single-component material lock case
Steel
Single-component material faceplate
Stainless steel
Single-component material locking elements
Steel
Supplement
with steel swarf protection sleeves
Latch characteristics
Latchbolt with trigger lever
Colour of faceplate
stainless steel
Fire/smoke protection
door-leaf height – for fire-resistant doors
Number of leaves
2-leaf
A-opener
optional
Number of additional locks
2
Handle height
949 mm
Marking notch
949 mm
Finish of lock case
galvanised
Finish of faceplate
matt
Characteristics of deadbolt
Without deadbolt
Cylinder hole-type
Round cylinder
Lock case
closed
Width of lock case
90 mm
Lock class
Grade 4
Characteristic of faceplate
Round
Faceplate end
Round
Type of door
Smoke protection door, Fire protection door, Anti-panic door
Bottom locking position 1 (B1)
790 mm
Version
Lever handle-operated, Automatic
Follower
Clamping follower
Single-component material follower
Steel
Single-component material latch
Steel
