02150180_na00

02150297

Part No.02150297
EAN
Product description Technical data Downloads
Area of application
Door technology
Area of application (specified)
Turn-Only, Locks
Product type

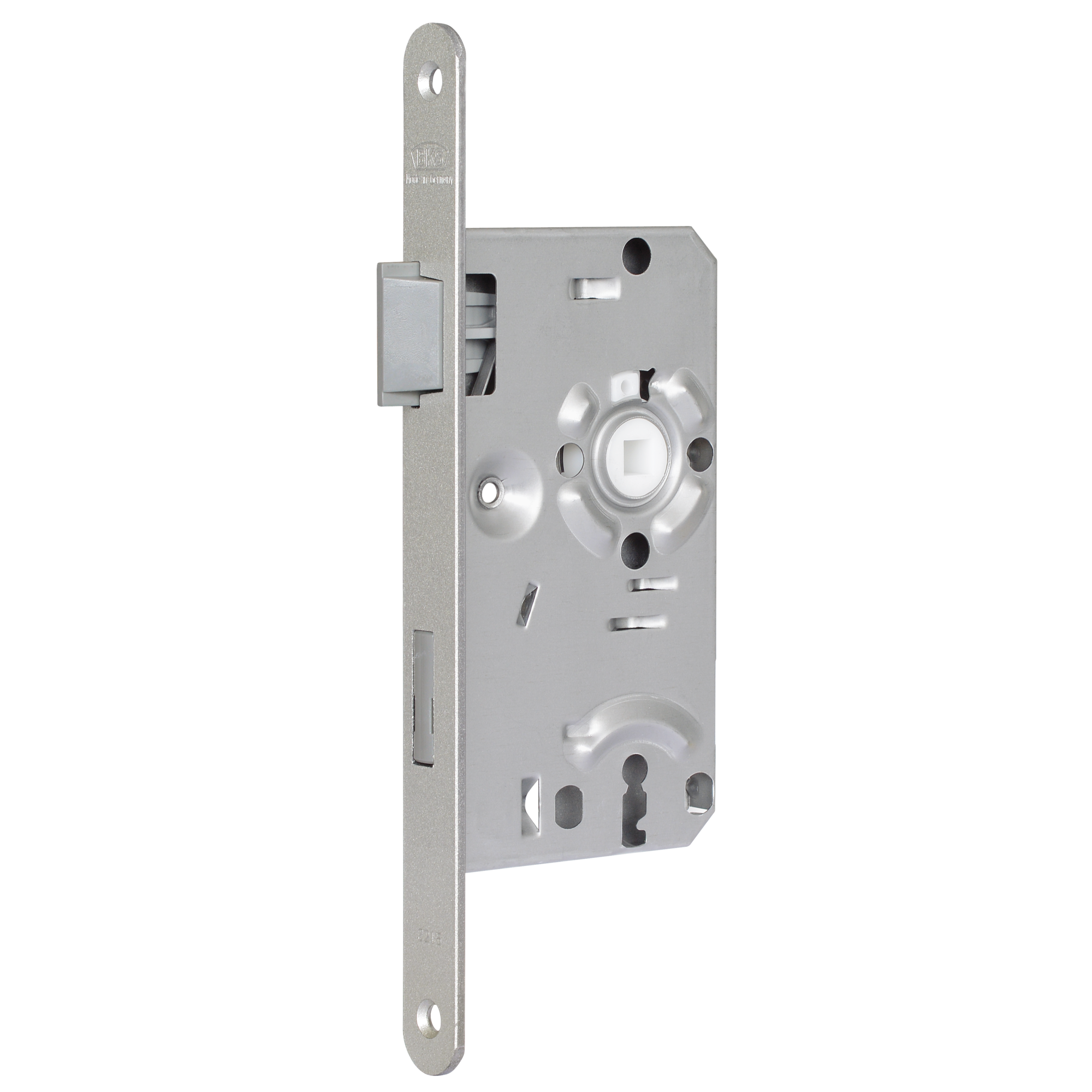

Zimmertürschloss
Packing unit
1
Minimum ordering unit
1
Login

Please enter your login credentials to view prices or to order items

20 Variants found
02150180_ma00
02150049 | Zimmertürschloss | Bath,55/20,rd,DL,8,la+db plastic,ns
Part No.02150049
EAN
To the product
02150180_ma00
02150049Z | Zimmertürschloss | Bath,55/20,rd,DL,8,la+db plastic,ns,20
Part No.02150049Z
EAN
To the product
02150180_ma00
02150050 | Zimmertürschloss | Bath,55/20,rd,DR,8,la+db plastic,ns
Part No.02150050
EAN
To the product
02150180_ma00
02150050Z | Zimmertürschloss | Bath,55/20,rd,DR,8,la+db plastic,ns,20
Part No.02150050Z
EAN
To the product
02150180_ma00
02150067 | Zimmertürschloss | Bath,55/20,rd,DL,8,la+db ZDC,ss
Part No.02150067
EAN
To the product
02150180_ma00
02150068 | Zimmertürschloss | Bath,55/20,rd,DR,8,la+db ZDC,ss
Part No.02150068
EAN
To the product
02150180_ma00
02150087 | Zimmertürschloss | Warded,55/20,rd,DL,8,la+db plastic,ns
Part No.02150087
EAN
To the product
02150180_ma00
02150088 | Zimmertürschloss | Warded,55/20,rd,DR,8,la+db ZDC,ss
Part No.02150088
EAN
To the product
02150180_ma00
02150106 | Zimmertürschloss | Warded,55/20,rd,DR,8,la+db plastic,ns
Part No.02150106
EAN
To the product
02150180_ma00
02150106Z | Zimmertürschloss | Warded,55/20,rd,DR,8,la+db plastic,ns,20
Part No.02150106Z
EAN
To the product
02150180_ma00
02150109 | Zimmertürschloss | Warded,55/18,rd,DR,8,la+db plastic,ns
Part No.02150109
EAN
To the product
02150180_ma00
02150126 | Zimmertürschloss | Warded,55/20,rd,DL,8,la+db ZDC,ns
Part No.02150126
EAN
To the product
02150180_ma00
02150127 | Zimmertürschloss | Warded,55/20,rd,DR,8,la+db ZDC,ns
Part No.02150127
EAN
To the product
02150180_ma00
02150162 | Zimmertürschloss | Bath,55/20,rd,DL,8,la+db ZDC,nickel-silv
Part No.02150162
EAN
To the product
02150180_ma00
02150163 | Zimmertürschloss | Bath,55/20,rd,DR,8,la+db ZDC,nickel-silv
Part No.02150163
EAN
To the product
02150180_ma00
02150180 | Zimmertürschloss | Warded,55/18,rd,DL,8,la+db plastic,ns
Part No.02150180
EAN
To the product
02150180_ma00
02150193 | Zimmertürschloss | Warded,55/18,rd,DL,8,la+db ZDC,ns
Part No.02150193
EAN
To the product
02150180_ma00
02150194 | Zimmertürschloss | Warded,55/18,rd,DR,8,la+db ZDC,ns
Part No.02150194
EAN
To the product
02150180_na00
02150207 | Zimmertürschloss | Warded,55/24,sq,DL,8,la+db plastic,ns
Part No.02150207
EAN
To the product
02150180_ma00
02150239 | Zimmertürschloss | Bath,55/18,rd,DL,8,la+db ZDC,ns
Part No.02150239
EAN
To the product
View all variants
No content available

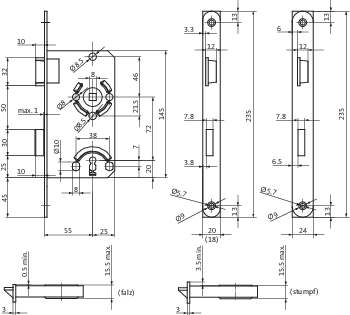

Attributes

Backset
55 mm
Hole distance
72 mm
Faceplate length
235 mm
Interior square of follower
8 mm
Faceplate width
20 mm
Type of faceplate
Flachstulp
Finish of faceplate
painted
Follower
One-piece
Single-component material lock case
Steel
Single-component material latch
PVC
Single-component material deadbolt
PVC
Single-component material follower
PVC
Single-component material faceplate
Iron
Colour of faceplate
nickel silver colour
Type No.
0215
Finish of lock case
galvanised
Deadbolt throw
10 mm
Characteristics of deadbolt
Standard
Lock case
closed
Width of lock case
77 mm
Length of lock case
143,5 mm
Thickness of lock case
15 mm
Lock class
Grade 1
Deadbolt
1-turn
Characteristic of faceplate
projecting on both sides
Faceplate thickness
3 mm
Type of door
Interior door
Opening direction of hinges
Left
