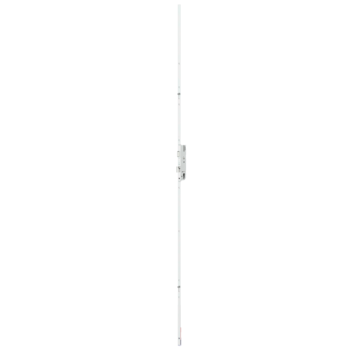

6-32688-02-0-1
Part No.6-32688-02-0-1
EAN
No content available
Attributes
Backset
35 mm
Faceplate dimension (in mm)
16 x 2,5
Hole distance
92 mm
Locking type (material short text)
SZ-R2a
Interior square of follower
8 mm
Top locking position 1 (A1)
345 mm
Faceplate length
1.900 mm
Type of faceplate
Flachstulp
Locking system
manual-locking
Marking notch
1.050 mm
Mechanically coupled
Extendable at top
Cylinder hole-type
Profile cylinder
Faceplate end
Square
Locking type
From marking notch upwards and downwards respectively 1 roller-cam and also down...
Show more
From marking notch upwards and downwards respectively 1 roller-cam and also downwards 1 shoot-bolt protrusion.
Show less
Bottom locking position 1 (B1)
731 mm
