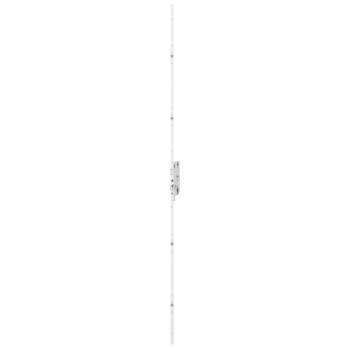

6-33160-04-0-1
Part No.6-33160-04-0-1
EAN
No content available
Attributes
Backset
40 mm
Faceplate dimension (in mm)
16 x 2,5
Hole distance
70 mm
Locking type (material short text)
SZ-R4
Interior square of follower
7 mm
Top locking position 1 (A1)
321 mm
Top locking position 2 (A2)
655,5 mm
Faceplate length
1.840 mm
Type of faceplate
Flachstulp
Locking system
manual-locking
Marking notch
912,5 mm
Cylinder hole-type
Profile cylinder
Faceplate end
Square
Locking type
From marking notch upwards and downwards respectively 2 roller-cams.
Bottom locking position 1 (B1)
359 mm
Bottom locking position 2 (B2)
693,5 mm
