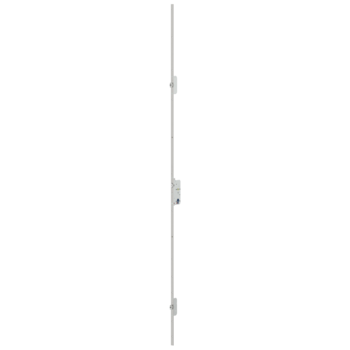

6-33198-61-L-8
Part No.6-33198-61-L-8
EAN
1 Version found

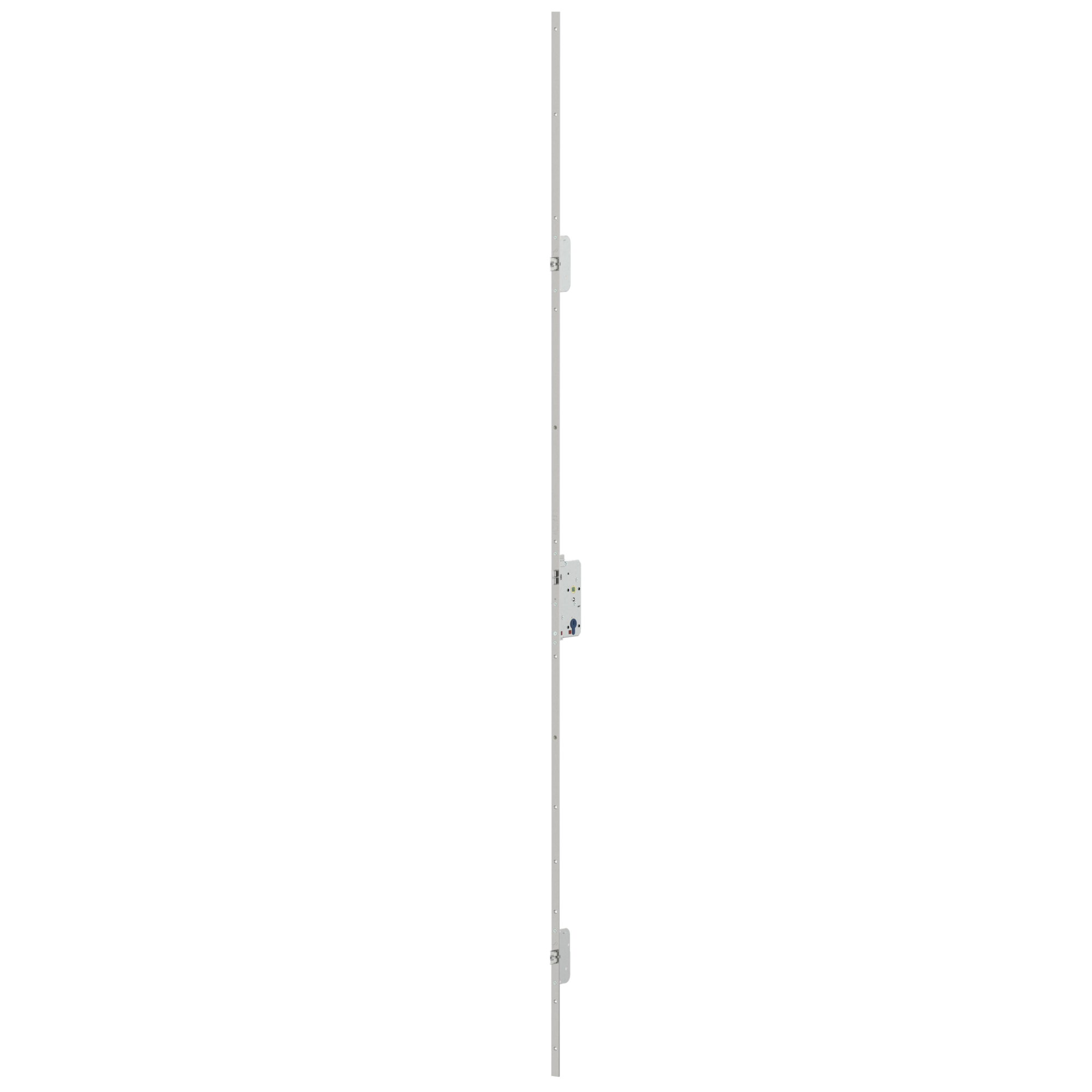

6-33198-61-R-8 | Panic multi-point lock | SEC2116-55/74Rz/20x3/1050/2285/700/790
Part No.6-33198-61-R-8
EAN
No content available
Attributes
Backset
55 mm
Faceplate dimension (in mm)
20 x 3
Hole distance
74 mm
Locking type (material short text)
sf2
Interior square of follower
9 mm
Top locking position 1 (A1)
700 mm
Faceplate length
2.285 mm
Type of faceplate
Flachstulp
Locking system
self-locking
Panic function
Panic function E
Fire/smoke protection
door-leaf height – for fire-resistant doors
Number of leaves
Single-leaf
A-opener
optional
Marking notch
1.050 mm
Cylinder hole-type
Round cylinder
Faceplate end
Square
Locking type
From marking notch upwards and downwards respectively 1 Automatic latchbolt.
Bottom locking position 1 (B1)
790 mm
